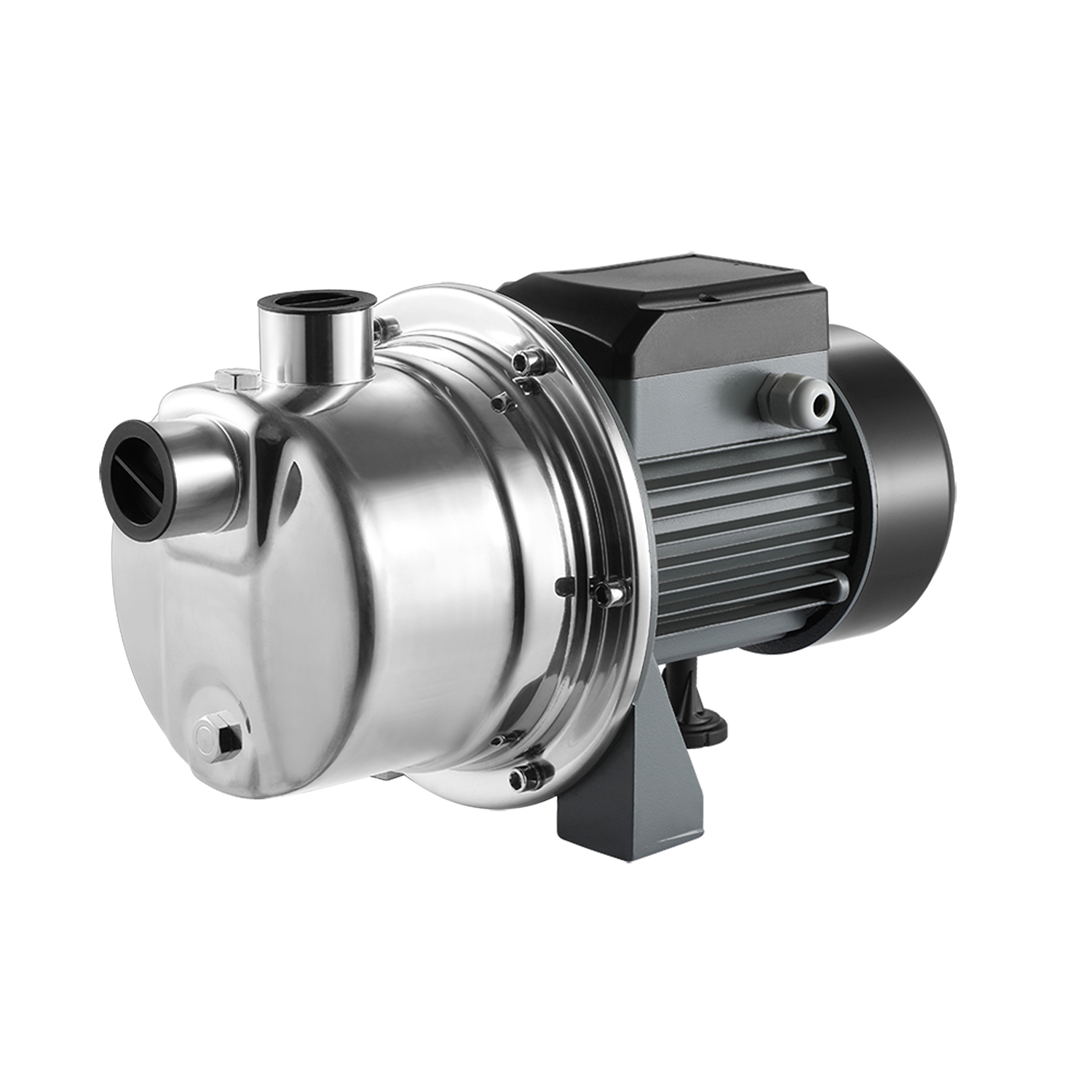

Product introduction:

These series self priming jet pumps equipped with same Venturi system each.They are suitable to convey clean water and non-aggres-sive chemical fluids,even with liquid mixed with gas ,from well in continuous duty;they are also indicated to increase water pressure in centralized water systems ,for small irrigation systems ,for watering gardens ,for washing systems with water

Component Construction :

Pump body : Stainless steel

Pump support : Aluminum Alloy

Motor housing :Aluminum Alloy

Impeller：Stainless Steel / PPO Plastic

Motor shaft : Carbon steel (304ss if request)

Mechanical seal : Ceramic / Graphite

Operating Condition:

Liquid Temperature up to 60 ℃

Ambient Temperature up to 40 ℃

Total Suction lift up to 9 m

Motor :

Single Phase 220V /50Hz ,110V /60Hz if request

Insulation Class B

Production :IP44 ,IP54 if request

Cooling：External Ventilation

With Thermal Protector

Continuous Work S1
