Installations and Use

Product introduction:

These submersible pumps is consisted of water pump,seals and single phase or three phase asynchronous submersible motor ,the pump is provided with the advantages such as small size and light weight ,easy removing and convenient installation ,high efficiency and energy-saving reliability and etc .

Component Construction :

Pump body :Cast iron

Motor housing :Aluminum Alloy

Impeller：Aluminum Alloy

Motor shaft :carbon steel (304ss if request)

Mechanical seal : Ceramic / Graphite

Cable ：8m cable with plug

Operating Condition:

Liquid Temperature up to 60 ℃

Ambient Temperature up to 40 ℃

5m maximum immersion depth

Motor :

Single Phase 220V /50Hz ,110V /60Hz if request

Insulation Class B

Production :IP68

With Thermal Protector

Continuous Work S1

QDX-F

Parameter Tables

Other Parameters

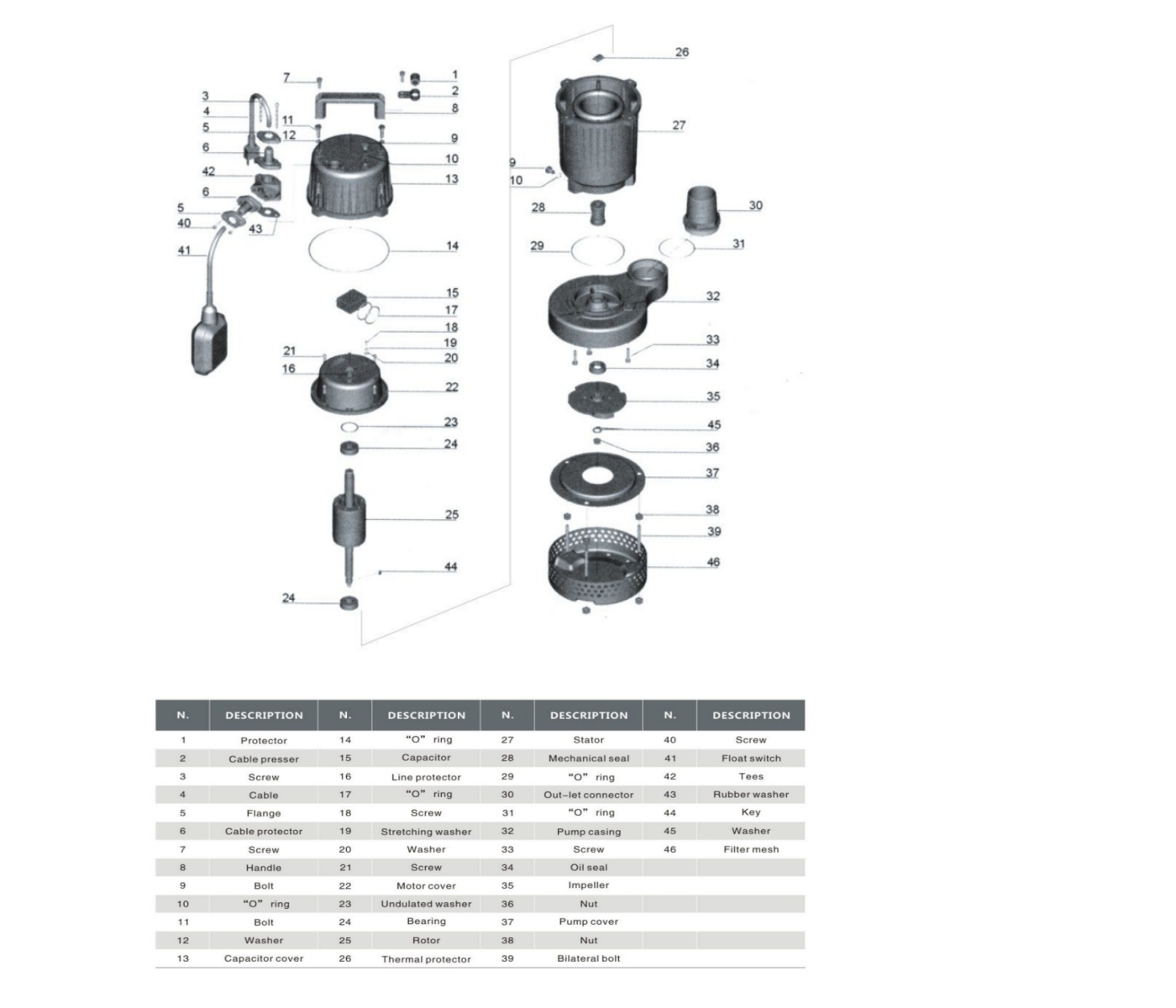

Explosion Charts

Model	Power		outlet	Rate.Flow	Rate.Head
Model	Kw	Hp	inch	m³/h	m
QDX1.5-12-0.25F	0.25	0.34	1	1.5	12
QDX1.5-17-0.37F	0.37	0.5	1	1.5	17
QDX1.5-25-0.55F	0.55	0.75	1	1.5	25
QDX3-18-0.55F	0.55	0.75	1.2	3	18
QDX10-12-0.55F	0.55	0.75	1.5	10	12
QDX15-7-0.55F	0.55	0.75	2	15	7
QDX1.5-32-0.75F	0.75	1	1	1.5	32
QDX3-24-0.75F	0.75	1	1.2	3	24
QDX8-18-0.75F	0.75	1	1.5	8	18
QDX10-16-0.75F	0.75	1	2	10	16
QDX15-10-0.75F	0.75	1	2.5	15	10
QDX30-6-0.75F	0.75	1	3	30	6
QDX6-25-1.1F	1.1	1.5	2	6	25
QDX3-30-1.1F	1.1	1.5	1	3	30
QDX14-18-1.1F	1.1	1.5	2	14	18
QDX15-16-1.1F	1.1	1.5	2.5	15	16
QDX40-6-1.1F	1.1	1.5	3	40	6
QDX6-33-1.5F	1.5	2	2	6	33
QDX25-12-1.5F	1.5	2	2.5	25	12
QDX40-9-1.5F	1.5	2	3	40	9
QDX50-7-1.5F	1.5	2	4	50	7
QDX35-15-2.2F	2.2	3	3	35	15
QDX65-7-2.2F	2.2	3	4	65	7
QDX90-5-3F	3	4	6	90	5
