Product introduction:
These centrifugal pumps are single stage pump,suitable for both domestic and industrial applications to convey clean liquids and  non-aggressive chemical fluids. The hydraulic characteristic  is with higher head and smaller capacity

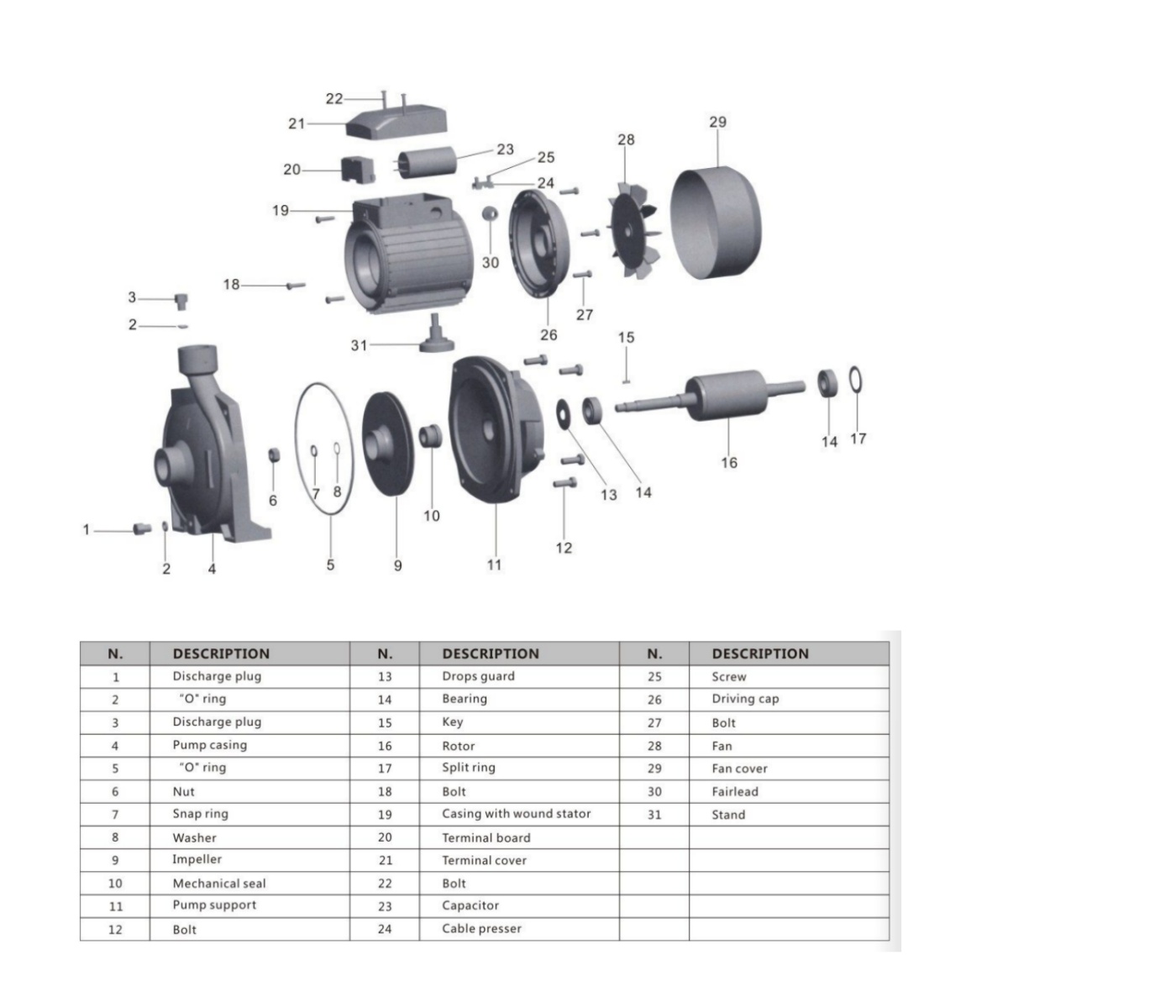

Component Construction :
Pump body :cast iron
Pump support : cast iron
Motor housing :Aluminum Alloy
Impeller:Brass
Motor shaft :carbon steel (304ss if request)
Mechanical seal : Ceramic / Graphite

Operating Condition:
Liquid Temperature up to 60 ºC
Ambient Temperature up to 40 ºC
Total Suction lift up to 9 m

Motor :
Single Phase 220V /50Hz ,110V /60Hz if request
Insulation Class B
Production :IP44 ,IP54 if request
Cooling:External Ventilation
With Thermal Protector
Continuous Work S1
