Product introduction:

With a small tank over its impeller ,these pump are a good solution for self-priming . And it is also with peripheral impeller and gain high pressure relative and its curves are steep particularly. The wide range of self priming pump meets the most different operating requirement such as: Supply water from well ,pool and so on ,increase the water pressure in the pipe,garden sprinkling or clean washing . These pumps should be installed in a covered area ,protected against the weather.

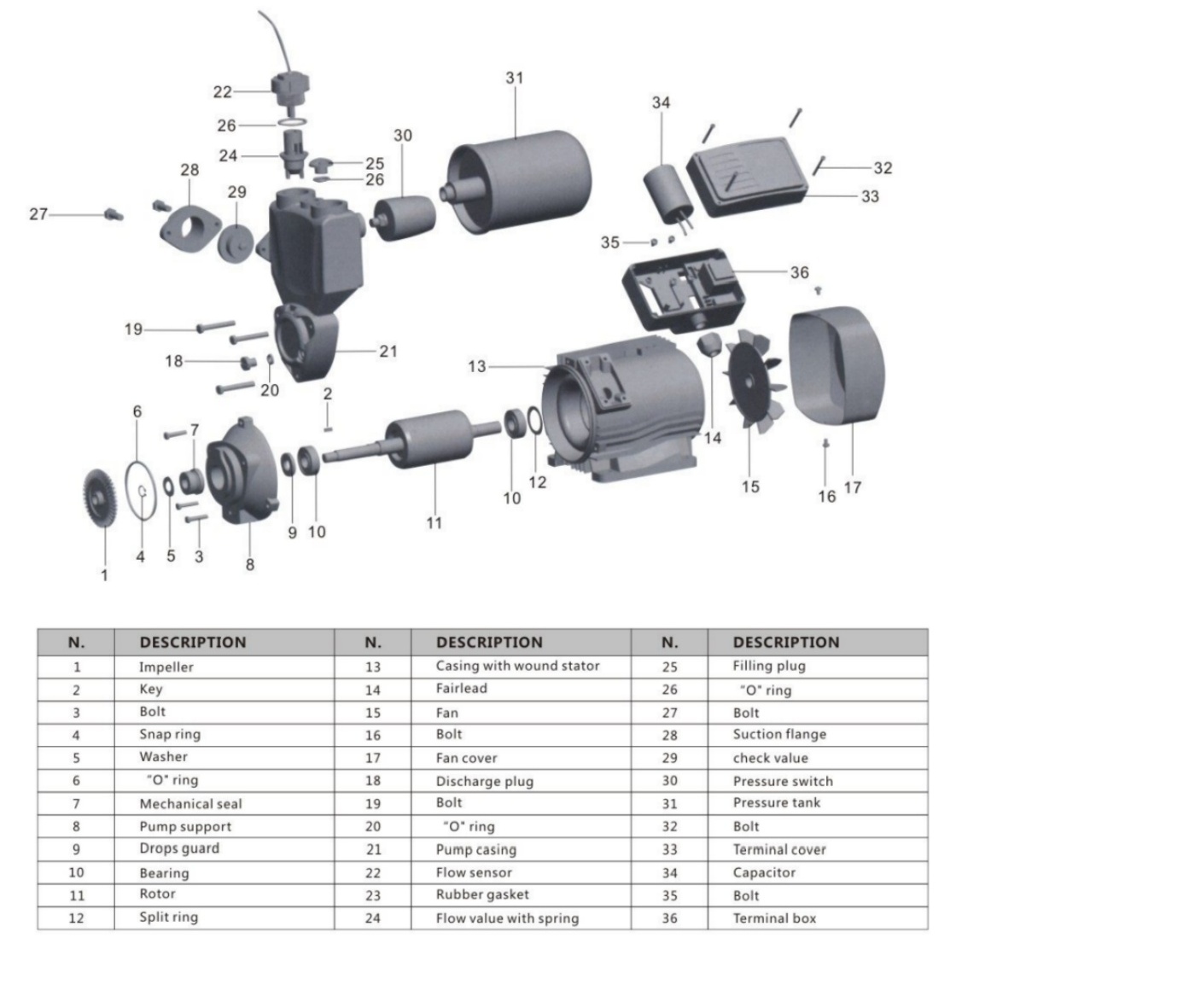

Component Construction :

Pump body :cast iron

Pump support : cast iron

Motor housing :Aluminum Alloy

Impeller：Brass

Motor shaft :carbon steel (30

4ss if request)

Mechanical seal : Ceramic / Graphite

Operating Condition:

Liquid Temperature up to 60 ℃

Ambient Temperature up to 40 ℃

Total Suction lift up to 9 m

Motor :

Single Phase 220V /50Hz ,110V /60Hz if request

Insulation Class B

Production :IP44 ,IP54 if request

Cooling：External Ventilation

With Thermal Protector

Continuous Work S1
