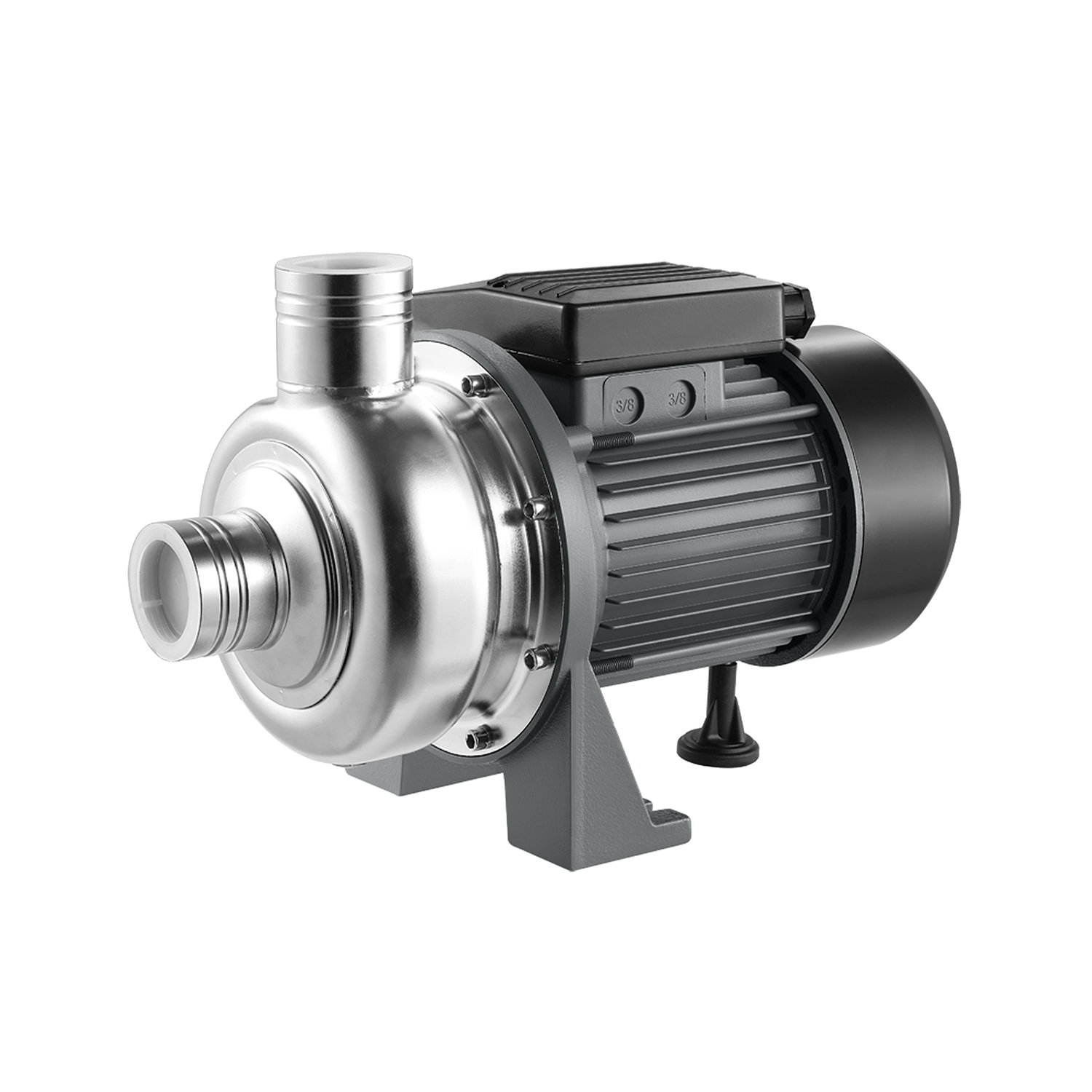

Product introduction:

These centrifugal pumps are single stage pump,suitable for both domestic and industrial applications to convey clean liquids and  non-aggressive chemical fluids. The hydraulic characteristic  is with higher head and smaller capacity

Component Construction :

Pump body : stainless steel 304

Pump support : Aluminum

Motor housing :Aluminum

Impeller：Stainless Steel / PPO Plastic

Motor shaft : Carbon steel (304ss if request)

Mechanical seal : Ceramic / Graphite

Continuous duty:

Insulation class ：F

Production class: IP55

Ambient  temperature  range:  -15℃～+40℃

Wet part material :SUS304 or SUS316

With overload protector in singal phase mottor
