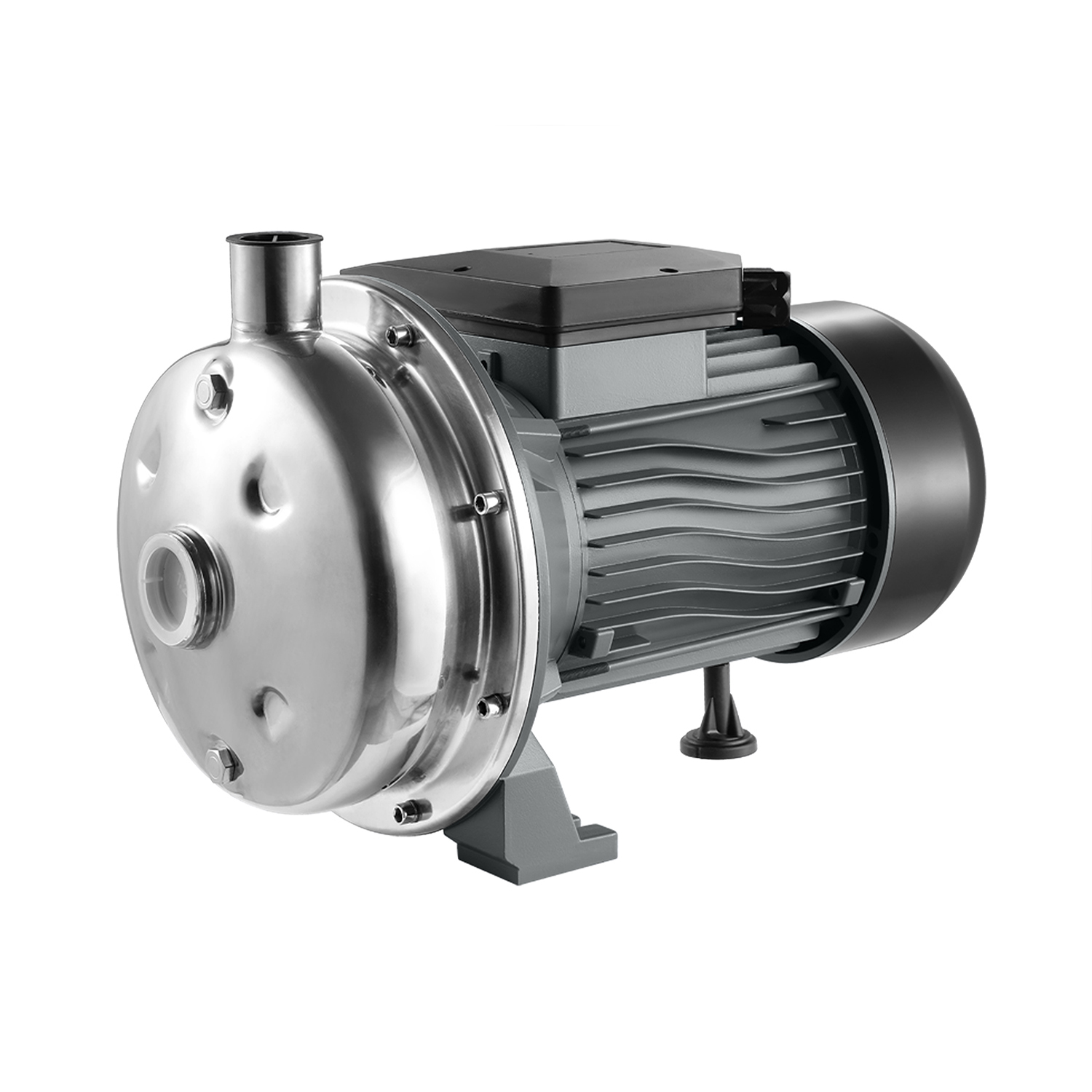

Product introduction:

These centrifugal pumps are single stage pump,suitable for both domestic and industrial applications to convey clean liquids and  non-aggressive chemical fluids. The hydraulic characteristic is with higher head and smaller capacity

Component Construction :

Pump body : stainless steel 304

Pump support : Aluminum

Motor housing :Aluminum

Impeller：Stainless Steel / PPO Plastic

Motor shaft : Carbon steel (304ss if request)

Mechanical seal : Ceramic / Graphite

Operating Condition:

Liquid Temperature up to 60 ℃

Ambient Temperature up to 40 ℃

Total Suction lift up to 9 m

Motor :

Single Phase 220V /50Hz ,110V /60Hz if request

Insulation Class B

Production :IP44 ,IP54 if request

Cooling：External Ventilation

With Thermal Protector

Continuous Work S1
