Installations and Use

Product introduction:
These centrifugal pumps are single stage pump,suitable for both domestic and industrial applications to convey clean liquids and non-aggressive chemical fluids. The hydraulic characteristic is with higher head and smaller capacity

Component Construction :
Pump body :cast iron
Pump support : cast iron
Motor housing :Aluminum Alloy
Impeller:Brass
Motor shaft :carbon steel (304ss if request)
Mechanical seal : Ceramic / Graphite

Operating Condition:
Liquid Temperature up to 60 ºC
Ambient Temperature up to 40 ºC
Total Suction lift up to 9 m

Motor :
Single Phase 220V /50Hz ,110V /60Hz if request
Insulation Class B
Production :IP44 ,IP54 if request
Cooling:External Ventilation
With Thermal Protector
Continuous Work S1

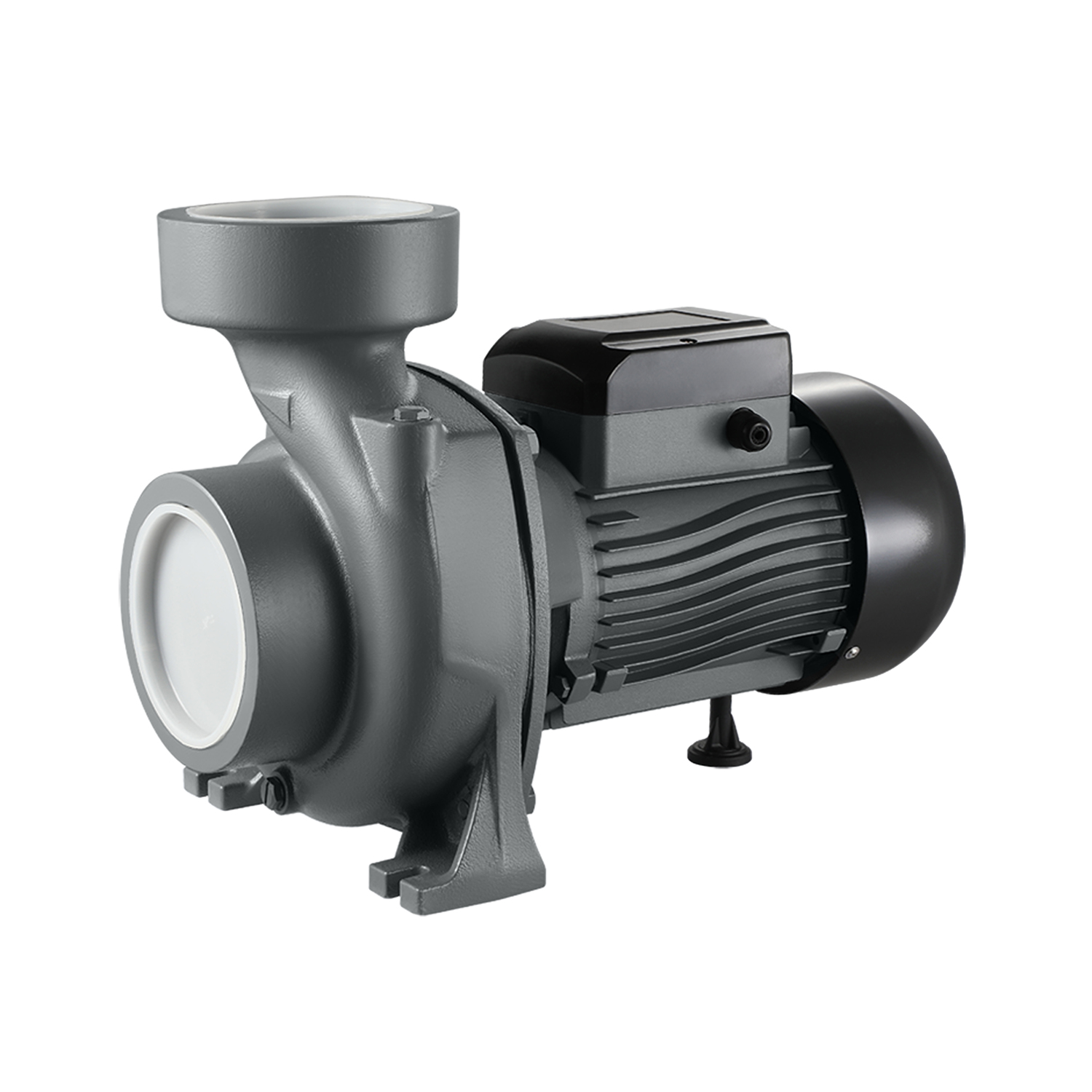

HFM6C

Parameter Tables

Other Parameters

Explosion Charts

Model	Power		In/outlet	Max.Flow	Max.Head
Model	Kw	Hp	inch	m³/h	m
HF(m)1B	0.55	0.75	1.5"*1.5"	15	12
HF(m)1A	0.75	1	1.5"*1.5"	18	13
HF(m)5B	0.75	1	2"*2"	20	15
HF(m)5A	1.1	1.5	2"*2"	21	17
HF(m)5BM	1.1	1.5	2"*2"	26	20
HF(m)5AM	1.5	2	2"*2"	26	23
HF(m)6C	1.5	2	3"*3"	40	19
HF(m)6B	2.2	3	3"*3"	54	20.5
HF(m)6A	3.0	4	3"*3"	60	20.5
HF(m)6CR	2.2	3	4"*4"	66	15
HF(m)6BR	3.0	4	4"*4"	71	17
HF(m)6AR	4.0	5.5	4"*4"	80	19
