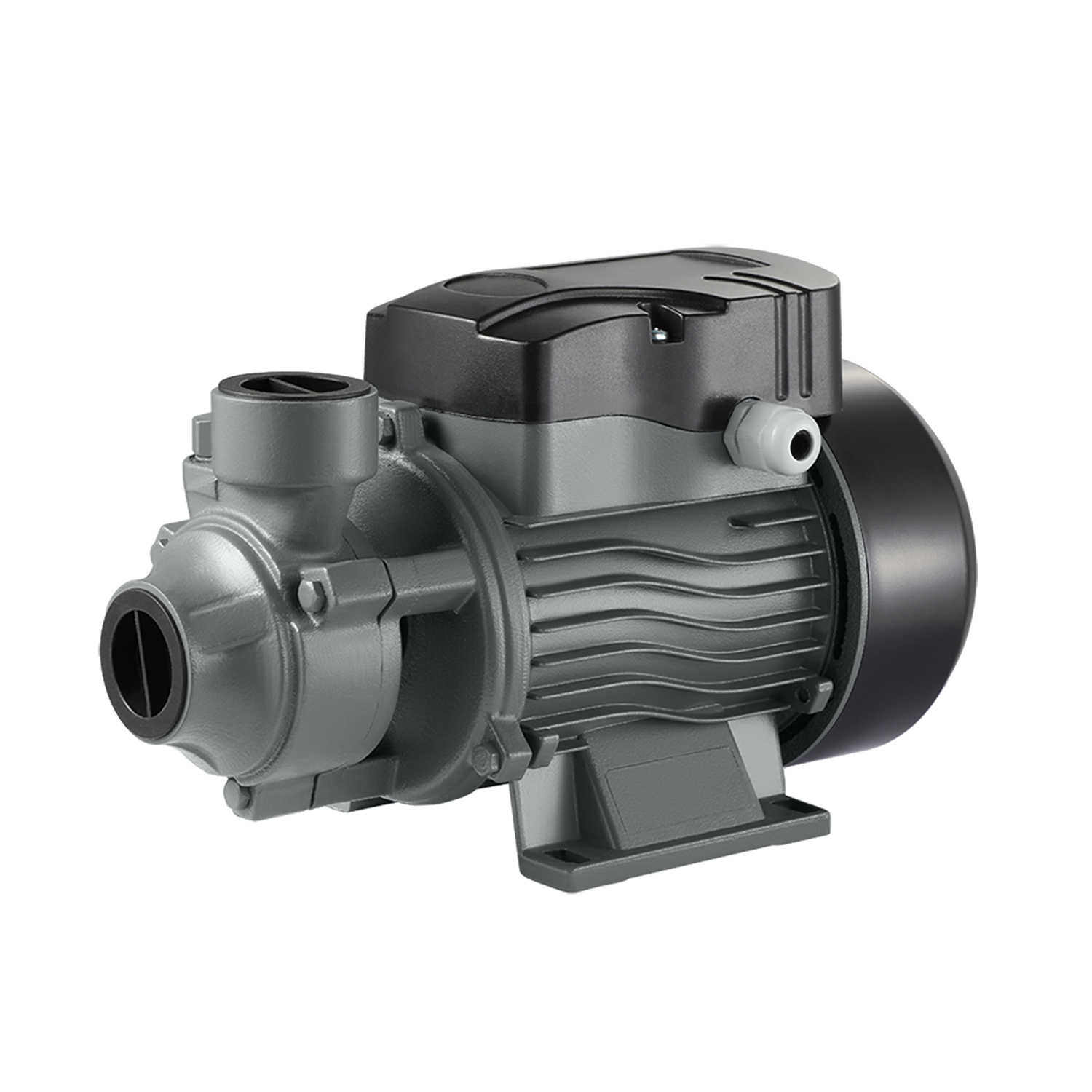

Product introduction:

This pump is suitable for pumping clean water,particularly suitable for domestic applications such as supply water from well ,pool etc ,the automatic distribution of water by surge tanks and pressure switch ,gardening ,and increasing of water pressure .

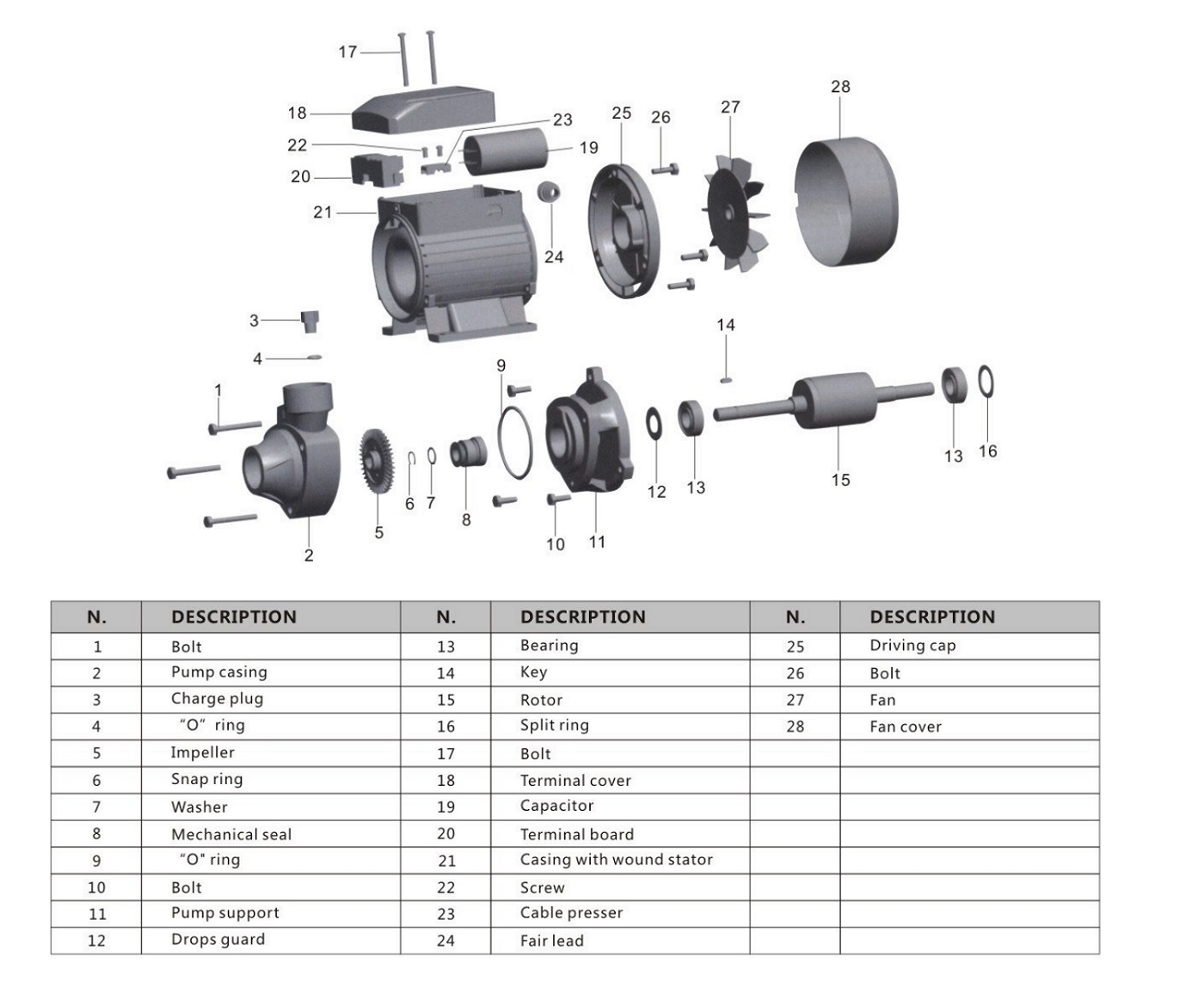

Component Construction :

Pump body :cast iron

Pump support : cast iron

Motor housing :Aluminum Alloy

Impeller：Brass

Motor shaft :carbon steel (304ss if request)

Mechanical seal : Ceramic / Graphite

Operating Condition:

Liquid Temperature up to 60 ℃

Ambient Temperature up to 40 ℃

Total Suction lift up to 9 m

Motor :

Single Phase 220V /50Hz ,110V /60Hz if request

Insulation Class B

Production :IP44 ,IP54 if request

Cooling：External Ventilation With Thermal Protector

Continuous Work S1
