Product introduction:

It is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering,fish farming and poultry raising, industrial and mining, water supply and drainage of enterprise and high-rise buildings, central air conditioner and centralized heating circulation system, etc.

PUMP：

* AIS1304 welding shaft

* Max Liquid temperature.+60 ℃

* Altitude: up to 1000 m

* Max.inlet pressure: limited by Max.operating pressurs

* Max.operating pressure: 8 bar

* Liquid PH Value :6.5-8.5

MOTOR：

* IE2 motor

* Motor with copper winding

* Built-in thermal protector for single phase motor

* Insulationn class: F

* Protection class: IPX4

* Max.ambient temperature:+40℃

PERFOMANCE RANGE:

* Flow rate up to 467 L/min(28 m³/h）

* Head up to 84m

OPERATING LIMITS :

* Suction lift up to 8m

* Fluid temperature up to 35 ℃

* Max.ambient temperature:+40℃

TMH-A

Parameter Tables

Other Parameters

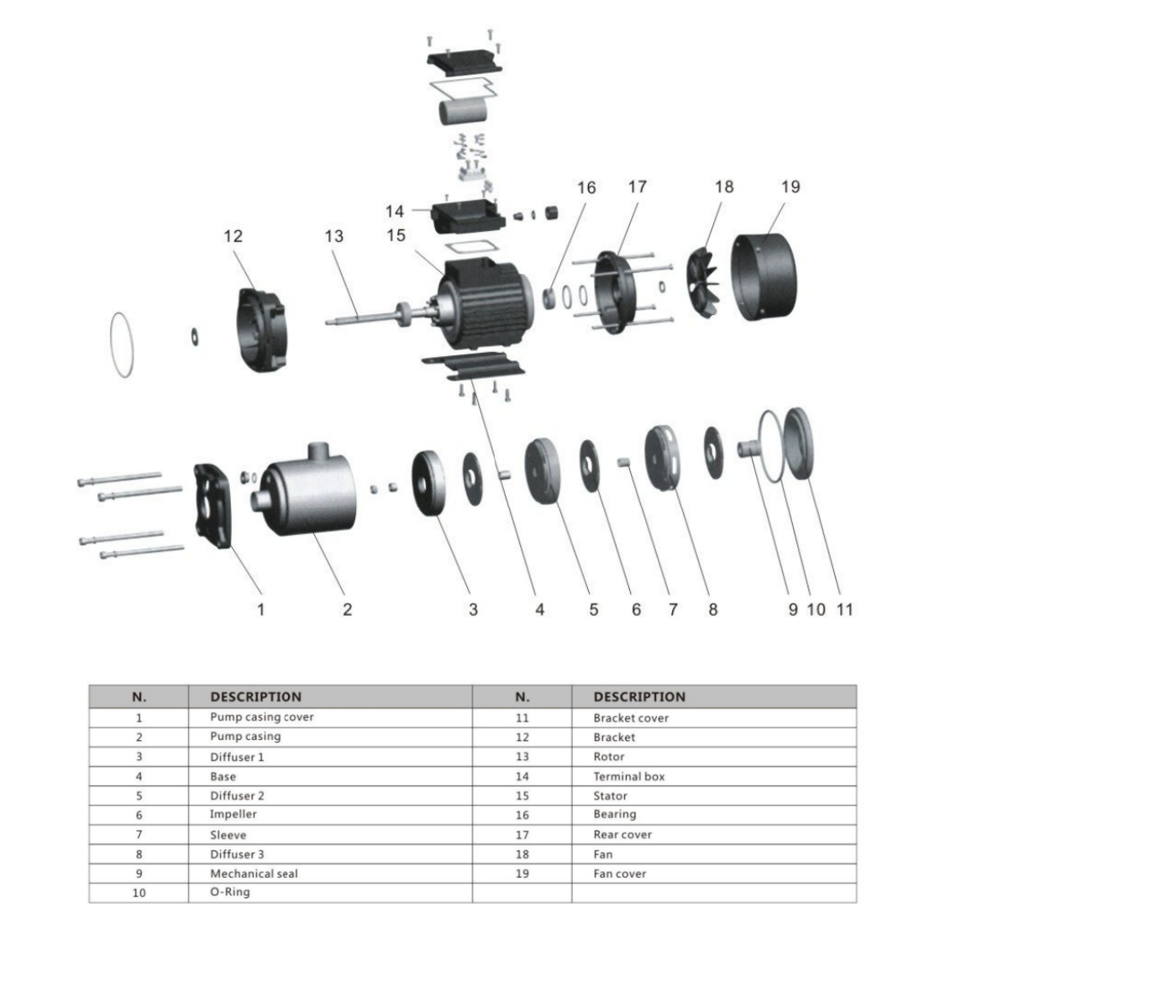

Explosion Charts

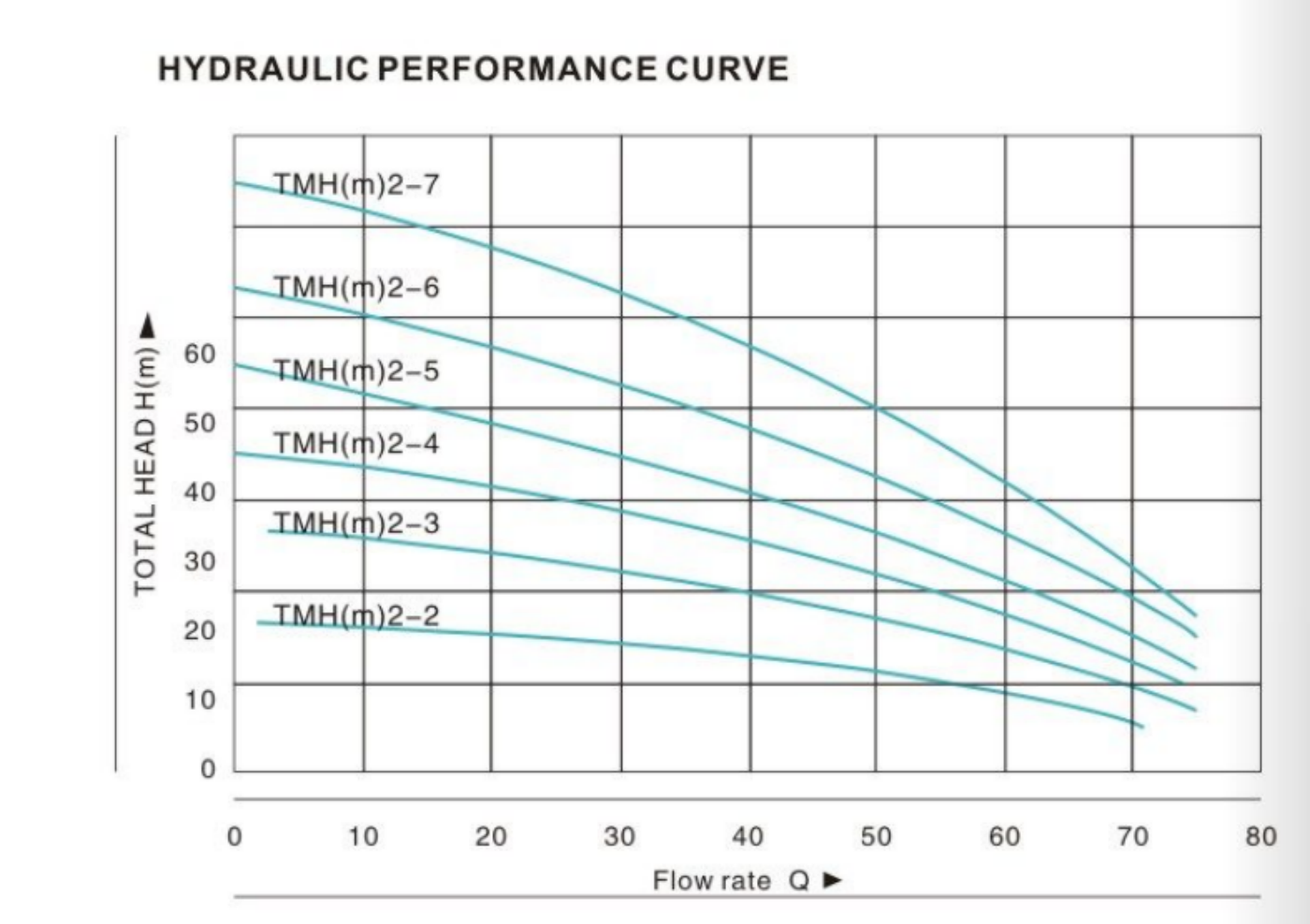

Model	Power	Dna	Dnm	Q	0	1	1.5	2	2.5	3	3.5	4	4.5
Model	kw	Inch	Inch	m³/h	0	1	1.5	2	2.5	3	3.5	4	4.5
TMH(m)2-2	0.25	1"	1"	H(m)	17	16	14.5	13.5	12	10.5	8.5	7	4.5
TMH(m)2-3	0.37	1"	1"		27	24.5	23	20.5	19	17	14	11	7
TMH(m)2-4	0.37	1"	1"		36	33	31	27.5	25.5	22.5	19	14.5	9.5
TMH(m)2-5	0.55	1"	1"		44	40	37	33.5	30.5	27	22.5	17	11
TMH(m)2-6	0.75	1"	1"		54	49.5	46	41.5	38.5	34	29	21.5	15
TMH(m)2-7	0.75	1"	1"		65.5	59.5	55.5	51	46	41	34	26	16.5
